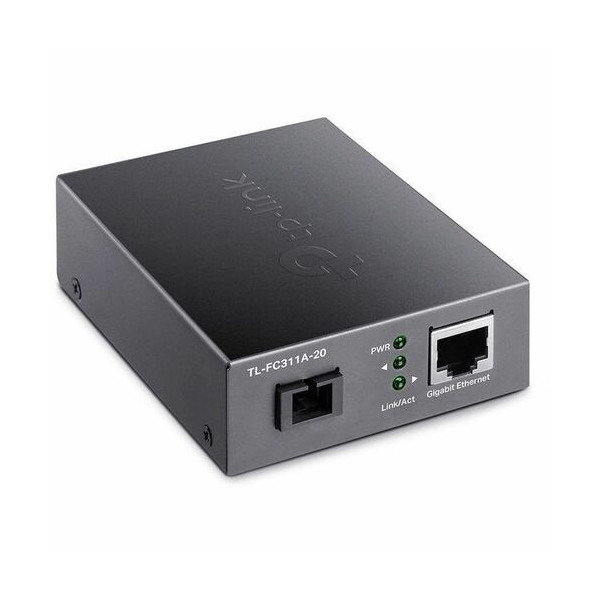

TP-Link Gigabit WDM Media Converter
Availability:
Out of Stock
Only 0 Available Online
- Write a review
$51.62
Tp Link TP-Link Gigabit WDM Media Converter - 1 x Network (RJ-45) - 1 x SC Ports - DuplexSC Port - Single-mode - 1550 nm, 1310 nm Fiber - Gigabit Ethernet - 10/100/1000Base-T, 100Base-TX, 1000Base-TX - 1000 Mbit/s - 20 km - Standalone, Rack-mountable
TP-Link Gigabit WDM Media Converter - 1 x Network (RJ-45) - 1 x SC Ports - DuplexSC Port - Single-mode - 1550 nm, 1310 nm Fiber - Gigabit Ethernet - 10/100/1000Base-T, 100Base-TX, 1000Base-TX - 1000 Mbit/s - 20 km - Standalone, Rack-mountable
What This Product Does
TL-FC311A-20 is a gigabit media converter, providing a gigabit RJ-45 port and a gigabit SC fiber port, which can convert between electrical and optical signals. And long-distance data transmission through optical fiber can be applied to commercial scenarios such as park security monitoring and wireless networking.
How This Product Works
TL-FC311A-20 adopts WDM (wavelength division multiplexing) technology, helping send and receive data at a distance of up to 20 km with only a single mode fiber, which saves half of the cable deployment cost for customers. TL-FC311A-20 transmits data at 1550 nm wavelength and receives data at 1310 nm wavelength on optical fiber. Therefore, the terminal device used in conjunction with the TL-FC311A-2 should send data at a wavelength of 1310 nm and receive data at a wavelength of 1550 nm. TP-Link another media converter TL-FC311B-20 is one of the products that can cooperate with TL-FC311A-20.
Features
- 1× 10/100/1000Mbps Auto-Negotiation RJ45 port supports Auto-MDI/MDIX
- Auto-negotiation of Half-Duplex/Full-Duplex transfer mode
- Adopts WDM technology, transmitting and receiving data on one single fiber
- Extends fiber distance up to 20 km
