12U WALL MOUNT RACK ENCLOSURE CABINET HINGED DEEP ACRYLIC WINDOW
UPC: 037332189721
Availability:
Out of Stock
Only 0 Available Online
- Write a review
$867.42
Weight (Approximate) 29.03 kg
Rack Width 19" (482.60 mm)
Rack Height 12U
Height 25.06" (636.52 mm)
Width 23.63" (600.20 mm)
Depth 25.50" (647.70 mm)
Maximum Weight Capacity 90.72 kg
Static/Stationary Weight Capacity 90.72 kg
Rack Depth 24.50" (622.30 mm)

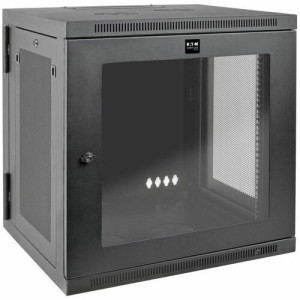

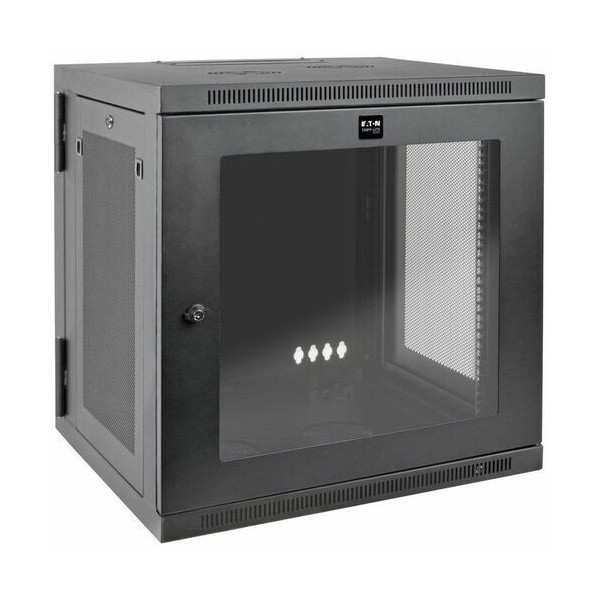

Tripp Lite by Eaton SRW12USDPG SmartRack 12U UPS-Depth Wall-Mount Rack Enclosure Cabinet - For UPS - 12U Rack Height x 19" (482.60 mm) Rack Width x 24.50" (622.30 mm) Rack Depth - Wall Mountable - Black, Clear - Steel, Acrylic - 90.72 kg Maximum Weight Capacity - 90.72 kg Static/Stationary Weight Capacity
The SRW12USDPG SmartRack 12U UPS-Depth Wall-Mount Rack Enclosure Cabinet is designed to house EIA-standard 19-inch rack equipment in network wiring closets, retail locations, classrooms, back offices and other areas with limited floor space where you need equipment to be secure, organized and out of the way. Constructed from heavy-duty steel with a durable black powder-coated finish, the cabinet has a maximum load capacity of 200 pounds.

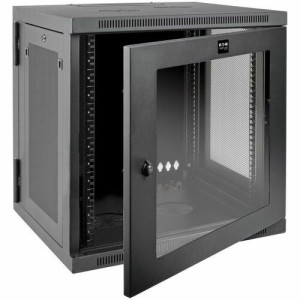

The front door features a shatter-resistant clear acrylic window that lets you monitor equipment readouts without unlocking the enclosure. Not only does the window help prevent equipment tampering and reduce acoustic noise, but it also adds visual flair to your IT installation.

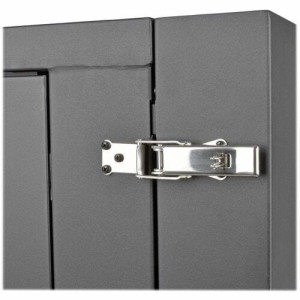

The cabinet swings away from the wall on a sturdy hinge, allowing easy back-door access to equipment and cabling during installation and maintenance. The doors and side panels lock securely to help prevent damage, tampering or theft. The top, bottom and removable side panels are vented, which allows air to flow freely and keep equipment cool. The reversible doors can open left or right by rotating the cabinet 180° before mounting. Convenient top and bottom ports allow easy cable routing.

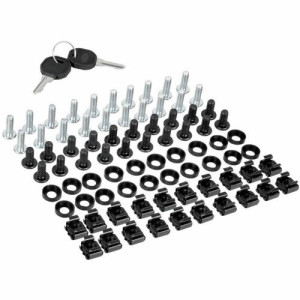

The SRW12USDPG comes fully assembled and ready to mount to the wall, or use Tripp Lite's optional SRCASTER rolling caster kit to make it a mobile rack. Square and threaded mounting holes and numbered rack spaces make equipment installation easy. The vertical mounting rails adjust in 7/8-inch increments to accommodate equipment up to 24.5 inches deep, such as network switches, UPS systems and related battery packs and cabling.
Features
Maximum load capacity of 200 lb.
Swings away from wall on hinge for easy back-door access
Front door includes shatter-resistant clear acrylic window
Locking steel cabinet vented at sides, top and bottom
Secures 12U of 19 in. rack equipment up to 24.5 in. deep
