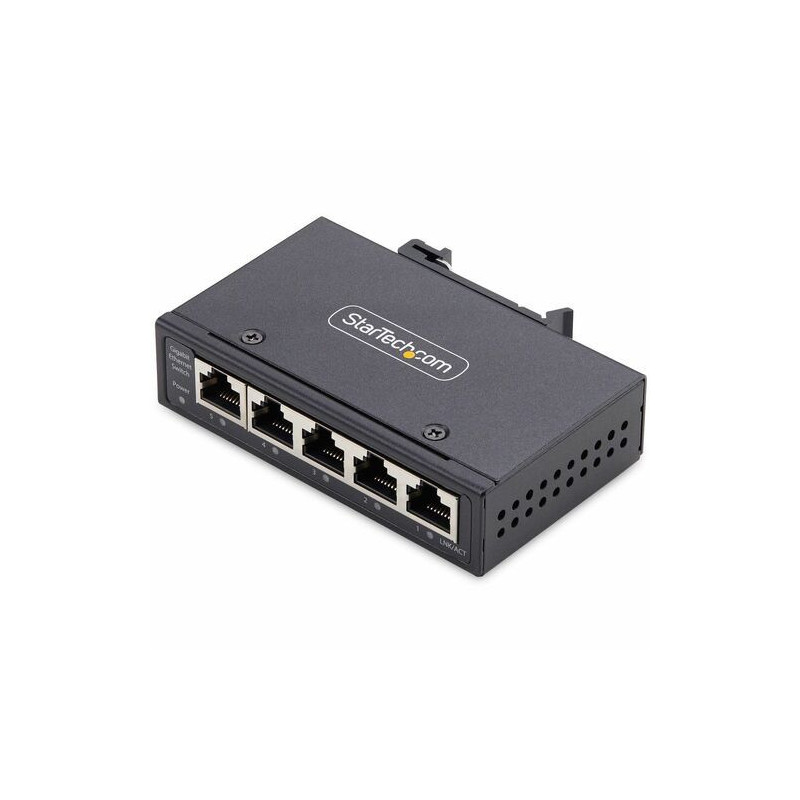

5-Port Unmanaged Industrial Network Switch

This unmanaged, fanless network switch delivers silent, energy-efficient performance with five multi-speed Ethernet ports (10/100/1000 Mbps). Its durable all-metal casing ensures long-lasting reliability.

Enhance Your Network

Expand your network connectivity with simple plug-and-play setup. This network switch is ideal for large file transfers, streaming, network sharing and storage, or other bandwidth-intensive applications. Auto-negotiation detects the highest supported speeds on your devices for maximum performance and compatibility.

Rugged TAA Switch

This TAA compliant unmanaged switch features an unintrusive design and small dimensions (3.9x2.3x1 inch / 100.5x60x 25.5mm). Key features such as 9K Jumbo Frames, 3-Pin Terminal Block Power Input, QoS IEEE 802.1p, and the included DIN Rail and Wall Mounting Kits give you the flexibility to use it in a multitude of scenarios. The rugged metal enclosure is IP30 rated to prevent objects larger than 2.5mm from getting inside and has an extended operating temperature range of -40°F-167°F (40°C-75°C). The clear diagnostic LEDs show the status of the devices at a glance.

Designed for Demanding Environments

This network switch is deal for industrial settings and centralized control stations where device reliability is essential and environmental conditions fluctuate. The compact form factor makes it an ideal solution for Industrial Automation and IP Surveillance.

• UNMANAGED 5-PORT GIGABIT SWITCH: Expand network connectivity with simple plug-and-play setup; 5x 10/100/1000Mbps RJ45 ports; Auto-negotiates speed; Level 4 ESD Protection; 3-Pin Terminal Block Power Input (9-60V DC); Fanless silent design; TAA Compliant
• DESIGNED FOR HARSH ENVIRONMENTS: IP30 Rated Unmanaged Industrial Ethernet Switch with Over Current Protection auto-negotiates speed; Rugged metal enclosure rated for an extended operating temp range: -40°F-167°F (40°C-75°C)
• ENHANCED NETWORK PERFORMANCE: Switching capacity of 10Gbps; 9K Jumbo Frame for reduced packet overhead; Quality of Service (QoS)/Broadcast Storm Protection (BSP) improves network performance; Front-facing diagnostic link/activity LEDs on each RJ45 port
• VERSATILE MOUNTING OPTIONS: Compact case design uses minimal space when installed on or under a work surface; Wall or DIN Rail mountable using the included Mounting Ears or DIN Rail Mounting Kit
• INDUSTRIAL APPLICATIONS: Designed for demanding environments, including industrial settings & centralized control stations where device reliability is essential; Compact form factor makes it an ideal solution for Industrial Automation and IP Surveillance
