Lenovo 18-Outlets PDU

Availability: Out of Stock

local_shipping Only 0 Available Online

Write a review

$17,562.94

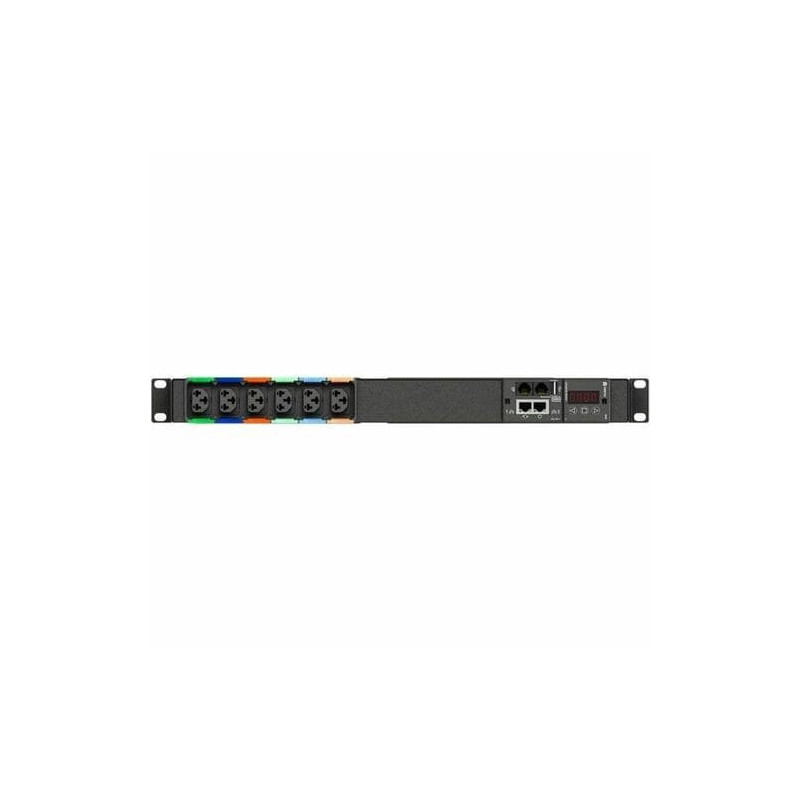

Lenovo 18-Outlets PDU - Switched, Monitored - IEC 60309 3P+E 100A - 18 x IEC 60320 C13/C19 - 230 V AC - Double Pole - Network (RJ-45) - 10 ft Cord Length - 1U - Horizontal/Vertical - Rack-mountable, Cabinet-mountable

Quantity

Add to wishlist

Out-of-Stock

Delivery policy

In-stock items usually arrive within 1-7 business days, depending on your location.

Return policy

30-day free return if the item is faulty, not as described, or the wrong model.

Guarantee safe & secure checkout

PDU distributes AC power to multiple servers and balances the load on the servers
With switched PDU, remotely monitor, connect or disconnect data center loads

About this product

Overview

The 1U Switched and Monitored 3-Phase Power Distribution Units (PDUs) make it quick and simple to deploy, protect, and manage your high-availability rack environment. These space efficient and power dense PDUs were co-designed by Vertiv and Lenovo and come in the following 1U designs available to meet the requirements of your most power-demanding systems:

18x Combination outlets C13/C19 with 80A 3-phase Delta input
18x Combination outlets C13/C19 with 48A 3-phase Wye input (ETL certification)
12x Combination outlets C13/C19 with 60A 3-phase Delta input
12x Combination outlets C13/C19 with 32A 3-phase Wye input 1U
18x Combination outlets C13/C19 with 48A 3-phase Wye input (CE certification)

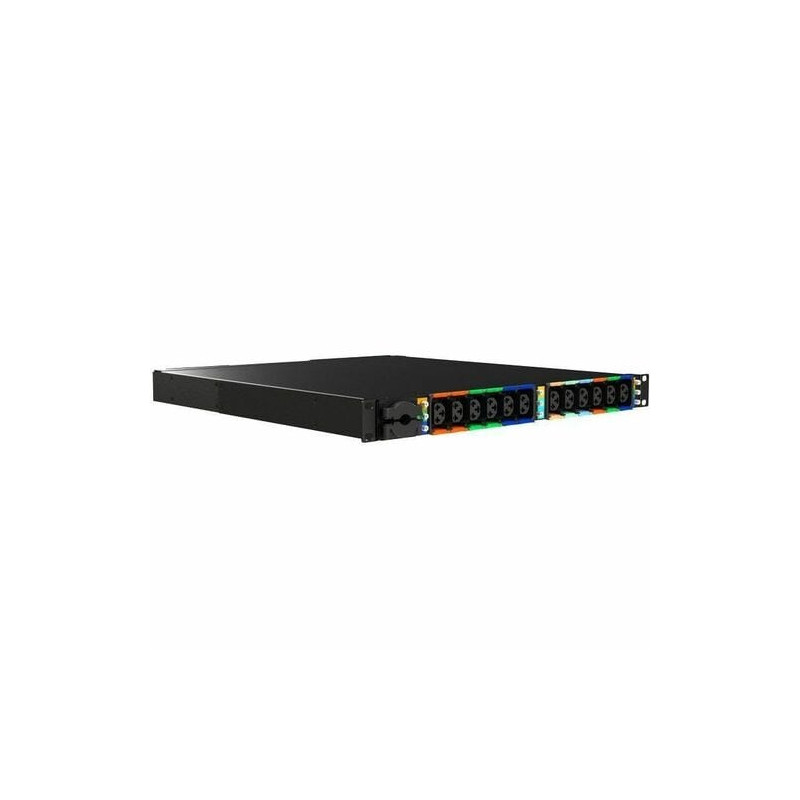

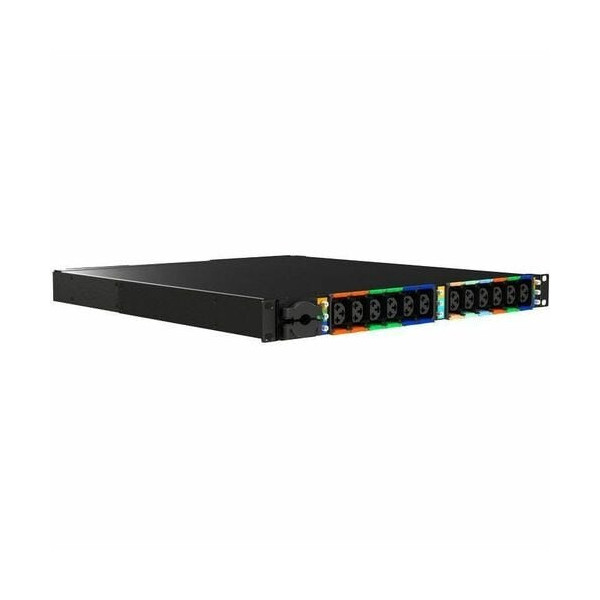

The outlets (receptacles) on the PDUs give administrators the ability to remotely turn on, turn off, or reboot power at each outlet to power cycle unresponsive IT equipment. Outlet level monitoring gives a comprehensive view of outlet power usage via remote network access. They provide on and off functionality to allow for power sequencing and to help prevent unintended overloading. The following figure shows the PDU with 18 rear-facing outlets.

Did you know?

With ever growing power densities in today's rack environments, it is all too easy to add load in the wrong place and trigger an overload event. The Switched and Monitored PDU offerings can minimize this impact, providing the ability to quickly recover with resettable circuit breakers for each designated bank of outlets (receptacles), referred to as circuits or load groups. Breakers are color coded to the outlets in a particular circuit to aid in configuration, installation, and maintenance. Furthermore, these PDUs also offer individual outlet remote monitoring and switching (on/off), which allows for remote power sequencing and further helping to prevent unintended PDU overloading

PDU distributes AC power to multiple servers and balances the load on the servers
With switched PDU, remotely monitor, connect or disconnect data center loads
